Electrical Formulator

Electrical Formulator: Your Complete Electrical Calculation Tool
Solve virtually any electrical design or engineering challenge with this powerful and intuitive electrical formulator. Packed with hundreds of conversion and calculation tools, it’s the most versatile utility in your toolkit. Save, print, or email your results. Easily access your most-used and recently used formulas. Every calculation is automatically saved for future reference.

Key Features:
• Instant access to over 100 professional-grade electrical formulas
• Save and organize your results for later reference
• Share results via email or print
• Highlights your most-used and recent formulas
• Designed for engineers, electricians, and energy professionals

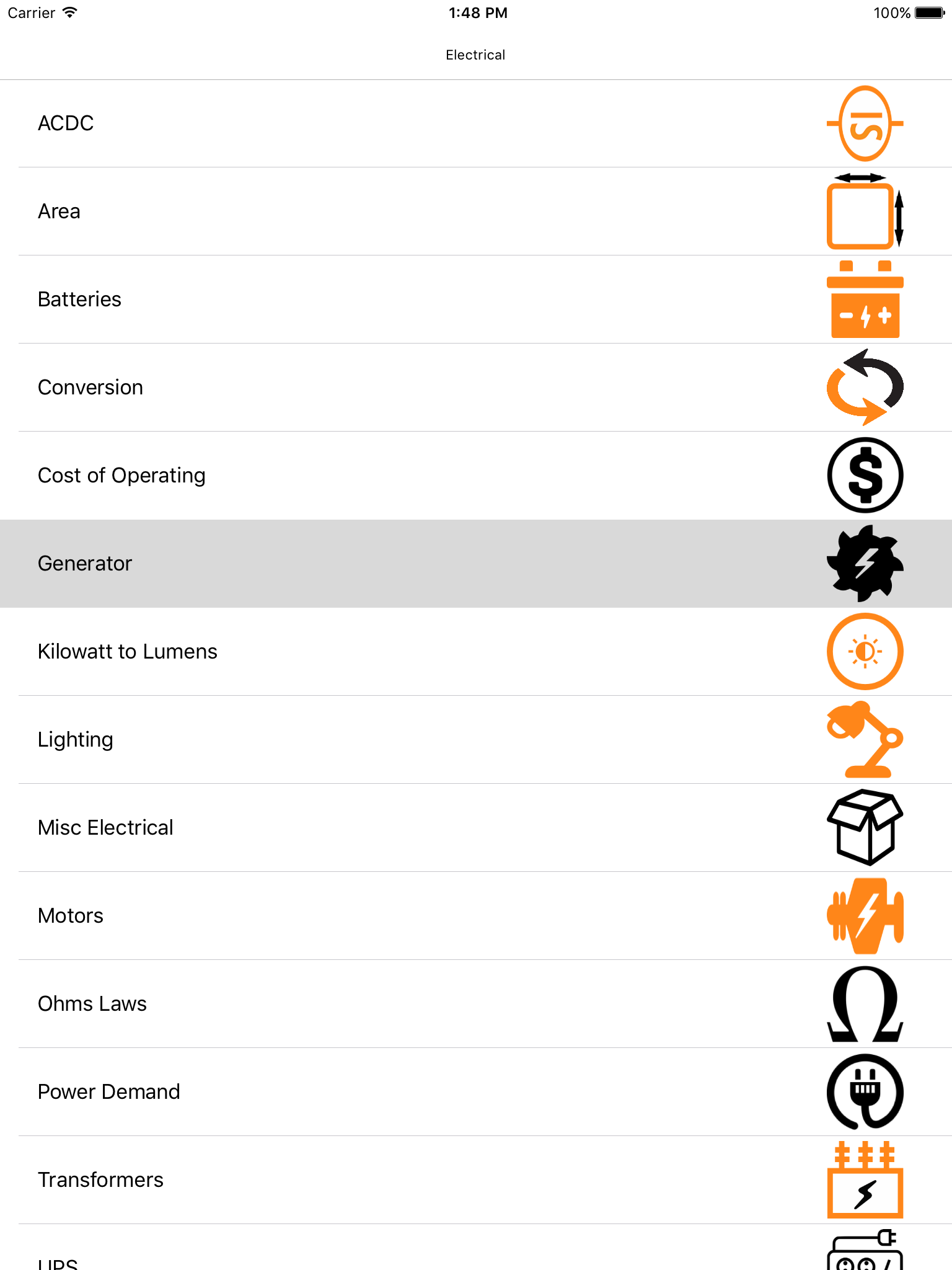

Formula Categories:
Batteries

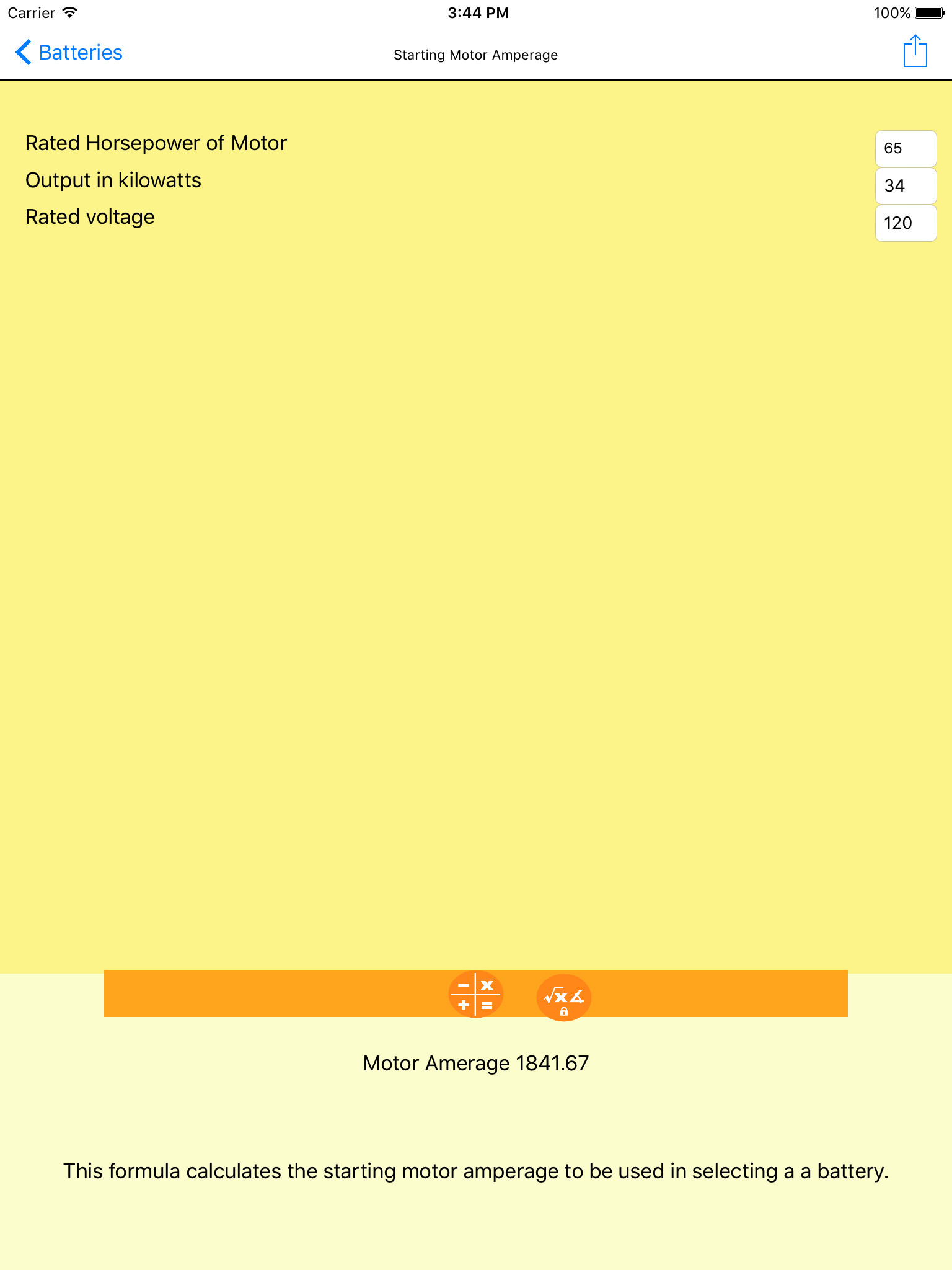

• Starting motor amperage
• Number of cells required
• Estimated operating time
Cost Calculations
• Appliance and lighting energy usage
• Estimated usage hours for new bulbs
• Insulation payback period
BTU Conversions
• BTU to joules, horsepower-hr, watt-hr, calories, foot-pounds, and more
Generator Calculations
• DC generator output
• Generator amperage and efficiency
Impedance & Reactance
• Resistance & reactance combinations
• Inductive and capacitive reactance
• Total impedance and parallel circuits
Kilowatts & Joules
• Convert kilowatts to BTU/hr, joules/sec, lumens, horsepower, megajoules/hr, and more

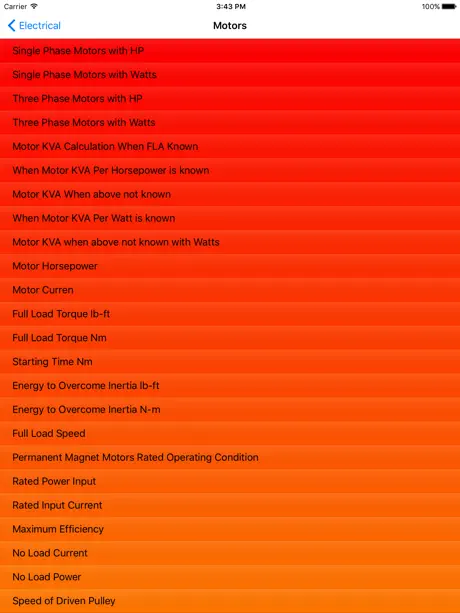

Motors
• Single- and three-phase motor calculations
• Locked rotor current
• Motor kVA (including multiple input scenarios)
• Motor speed analysis
Ohm’s Law
• Calculate for power, voltage, resistance, or current
Transformers
• Primary and secondary amperage
• Full-load transformer sizing (208V, 240V, 480V for single and three-phase)
• Impedance and amperage capacity calculations
Voltage Drop
• Copper and aluminum wire voltage drop (1-phase and 3-phase)
• US/Imperial and metric units supported
Wiring & Conduits
• Wire size and resistance (copper and aluminum)
• Wire length calculations
• Conduit sizing

Whether you’re working in the field, the lab, or the classroom, this electrical formulator helps you work faster, smarter, and with confidence.
Users are able to calculate twelve formulas for FREE. Purchase a subscription to calculate additional formulas. All subscriptions come with a 1-WEEK FREE TRIAL and SUPPORT Family Sharing.
