BassBox Reflex Pro

An application designed to maximize the performance of a subwoofer in bass reflex.
Calculates the size of the box in Bass Reflex enclosure following:
• BB4 (4th Order Boom Box) / SBB4 (Super 4th Order Boom Box).
• QB3 (Quasi 3th Order Butterworth) / SQB3 (SuperQuasi 3th Order Butterworth).
• C4 (Chebyshev to ugual ripple) / SC4 (4th Order Sub-Chebyshev).
• Maxim Flat.
• Box losses Ql 3, Ql 7 and Ql 15.
• Graphic for Frequency Response, Displacement-L. SPL, Thermally-L. SPL, Max Power SPL and Maxim Excursion.
• E.B.P. (Efficiency Bandwidth Product).

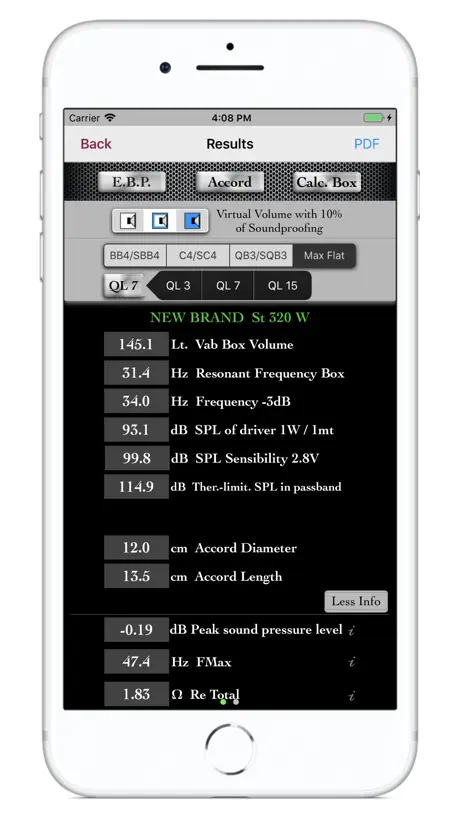

• Full results data: Sensibility Spl, Efficiency Spl, db Peak Level, Fmax, Re Total, Qes Total, Qts Total, Sd, Vd, Cms, Mms, Bxl, Cmes, Rms, Res.

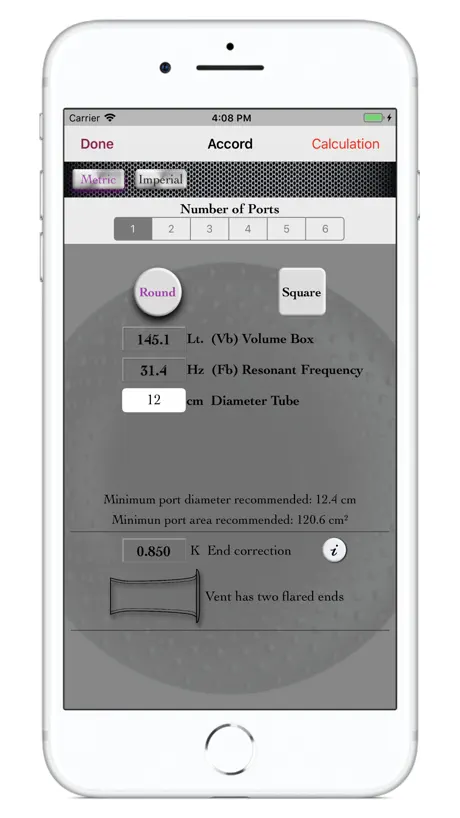

• Calculate Accord in Round or Square form.
• Three correction types for each end of the port.
• Select up to 6 Accord.
• Results of Area, Volume, Length.

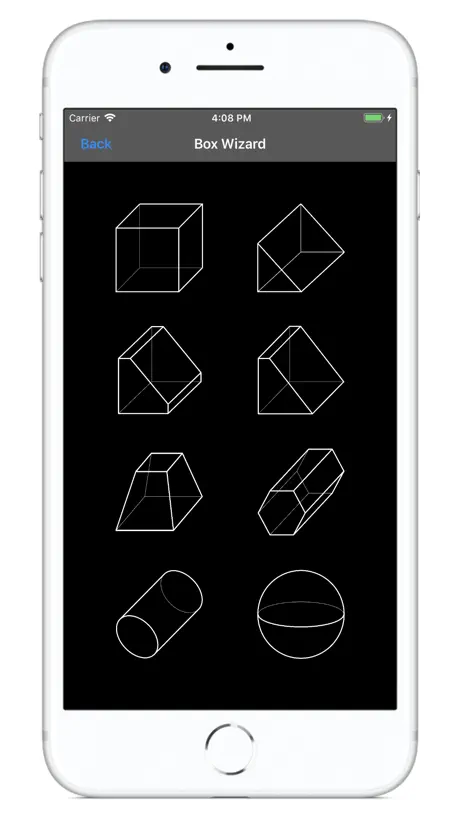

Selecting the shape and calculation of the volume of the box. Designs the box in the following forms:
- Cube / Rectangular Parallelepiped
- Triangle Prism
- Wedge
- Wedge2
- Truncated of Pyramid
- Hexagonal Prism
- Cylinder
- Sphere
• Detail of panel measurements to build the case with cut PDFs and cut pattern.

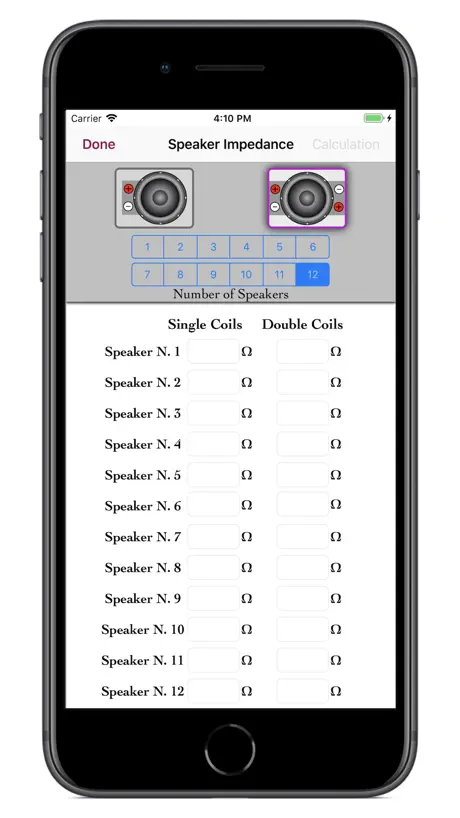

• Tool for calculating the electric resistance of two or more speakers, single or double coil in parallel, series or series / parallel.

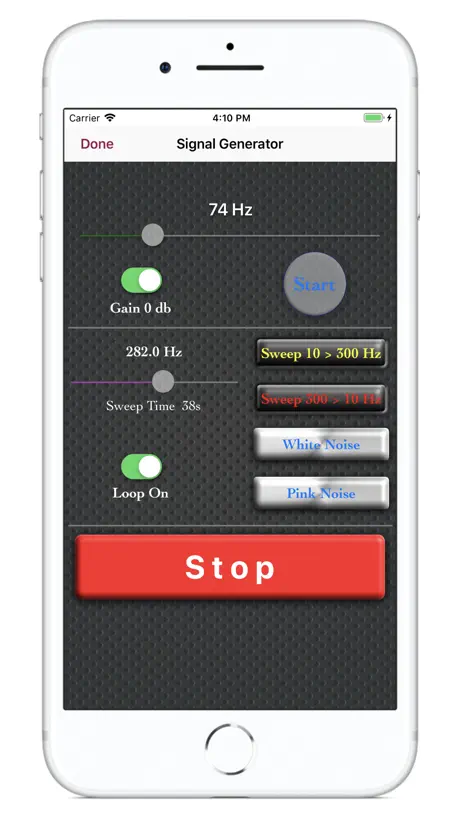

• Tool Signal Generator, useful for testing the performance of a subwoofer:
• Control of the single Frequency with the slider from 10Hz to 300Hz, Pink Noise, White Noise, Sweep Frequency 300>10Hz and 10>300Hz, Loop and Gain tones.
• Tool for calculating the Volume of speaker size.
• Saving, sharing or printing projects.
• Customization of projects with the possibility to enter the data of your business.
