WilhelmSK is a highly customizable display, monitoring and control dashboard for your boat.
WilhelmSK works best wth Signal K Server .
It can also connect directly to some devices:
º NMEA 0183 over TCP or UDP. (from for example, Digital Yacht's Smart WLN10)
º Any modern Navico (Lowrance, Simnet or B&G) GoFree MFDs
º NMEA 2000 via Yacht Device's YDWG-02
º NMEA 2000 via Actisense W2k-1
º Victron Venus GX or CCGX
º Victron VRM
º Chetco SeaSmart Devices
º Chetco HelmSmart
RayMarine Auto Pilot Support (via node-server or the YDWG only)
º View or change current mode (Standby, Auto, Wind, Track)
º View current target heading or Wind direction
º Change target heading or Wind direction
º Acknowledge "Turn To Waypoint'
Active Captain:
º You can view Active Captain Points of Interest and review or comment on them.
º Go to Settings->Appearance to show Active Captain Points of Interest on the maps.
Alarms and Notifications
º View list of current current alarms
º Acknowledge RayMarine "Turn To Waypoint' *
º Push notification support *
º Setup server side alarms *
º Set an anchor alarm with the push of a button *
Navionics Maps
If you already have the Navionics Boating application with an active subscription, you can now use the same Navionics charts in WilhelmSK. Ensure you are a registered user with Navionics and have a Username and Password. If you have not registered, go to the Navionics Boating App’s Main Menu, click on the top “Me” option and then click Login. In WilhelmSK click the login button on the bottom right of the map and enter your Navionics login information.
Features:
- Raymarine MFD: display and interact with a RayMarine MFD (discovered via Bonjour)
- Fusion stereo (control zone volumes, source input, play, pause etc.)

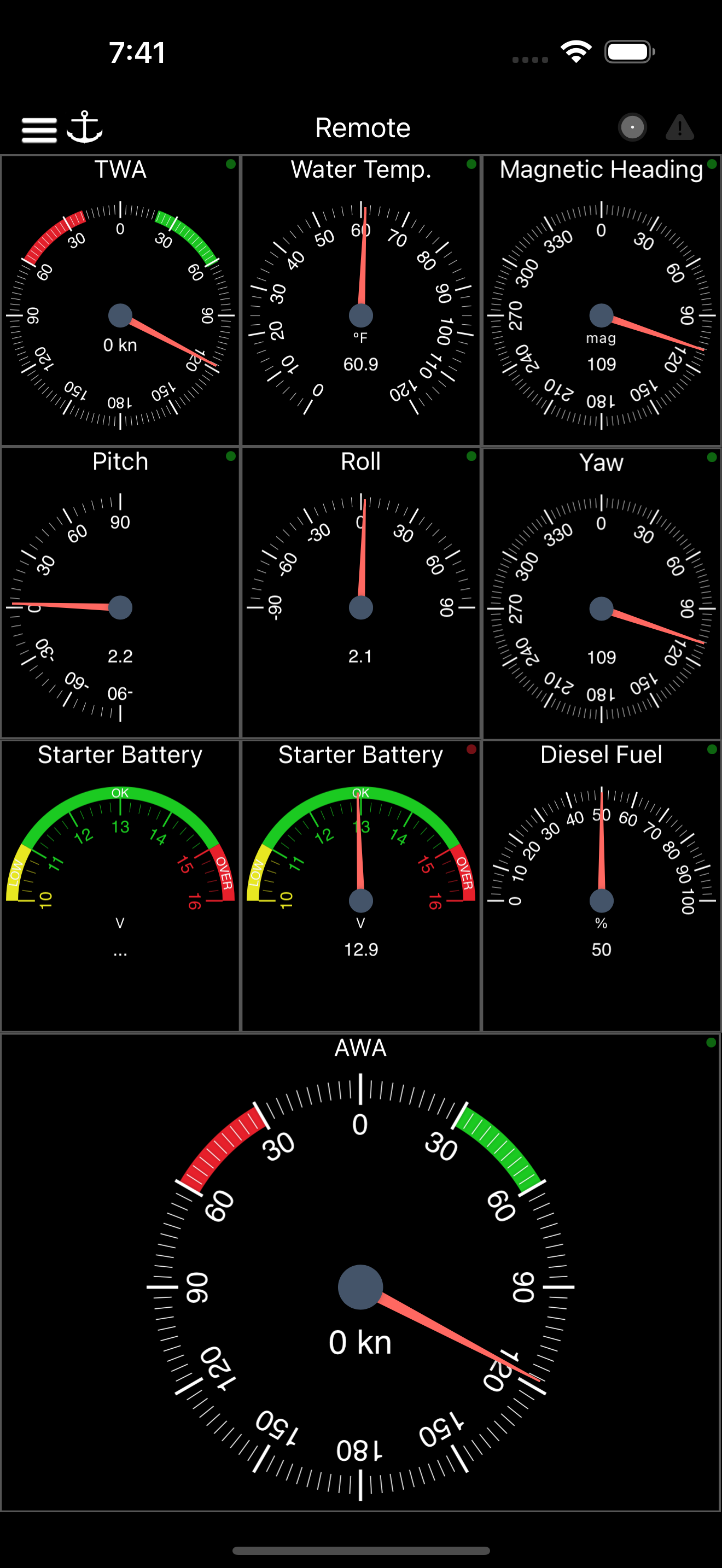

- Create a gauge for any value available via SignalK
- Sophisticated anchor alarm (requires node server and signalk-anchoralarm-plugin)
- Customize gauge display using SignalK meta.zones
- Customize gauge range, min/max, etc.
- Save custom gauges to node server or the cloud for use on other devices
- Wind Angle gauges can optionaly be rotated so that they always point ot the bow of the boat, regaurless of device positioning
- Place gauges by long pressing on a gauge and choosing a differnt one
- Make a gauge full screen by double tapping
- Multiple layout support. Create a differnt layout for Steaming, Sailing, Home Monitoring, etc.
- Customize the nuber of pages and their layout
- Manuall connection configuration synced accross devices via iCloud
- Automatic connection selection based on current ip (usefull when Bonjour is not available and you have multiple boats)
- Two themes, dark and light
- Animated gauge needles
- iPad Slideover and Split View support (Your gauge configuration can be customized for these views)
- Connections can be configured to be refreshed manually or at a specific time interval
- Design your own custom gauge templates
- Share your custom templates via Air Drop, eMail, Text, etc.
- Edit ApplyTV or other device layouts and templates remotely using your iPhone or iPad
- Most gauges can be configured to be digital or analog
- Enter the SignalK path and title for any gauge to show data not supported by default

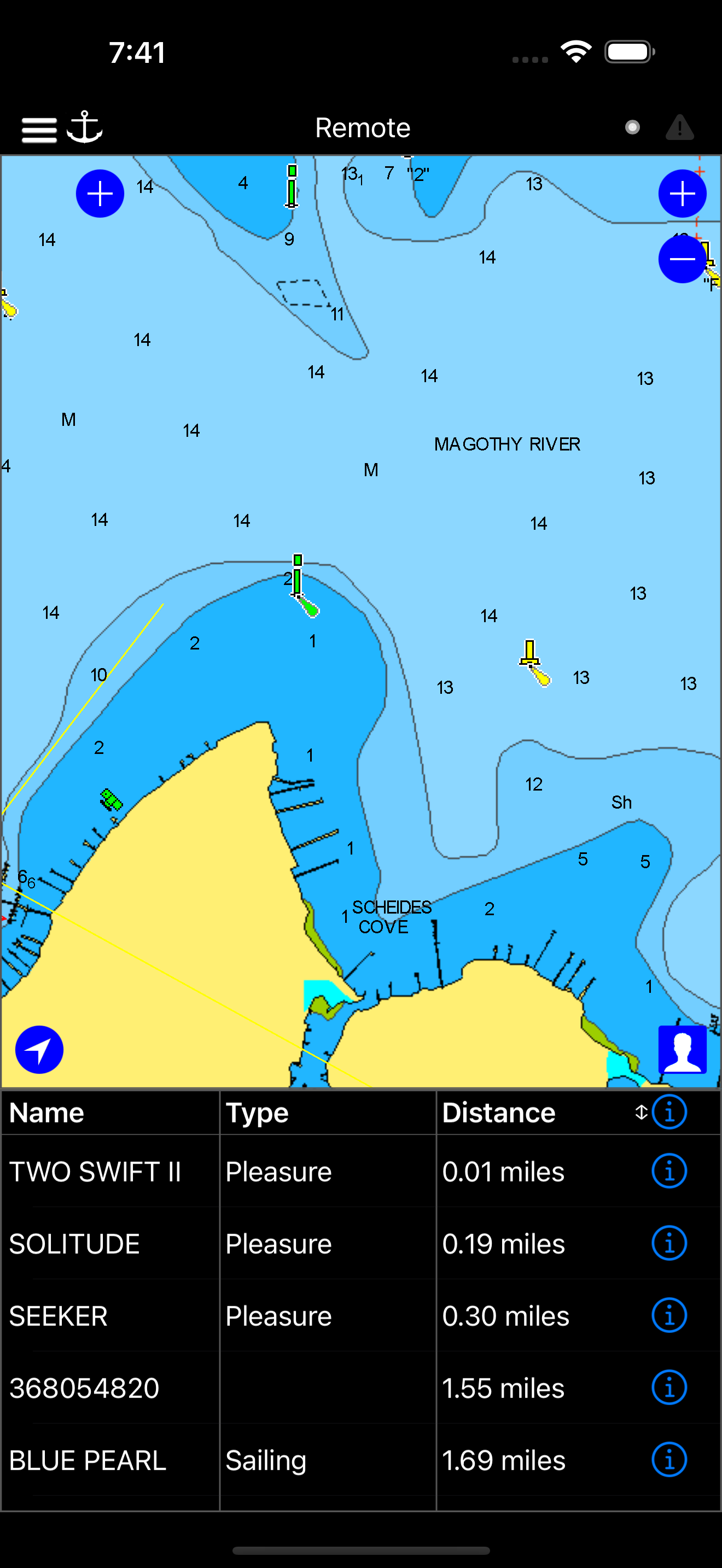

- Displays AIS targets in the Map views
- Configure node server plugins inside of the app
- IP and RTSP camera display
* Some advanced features require signalk-server-node and special plugins installed. Setup Instructions at https://github.com/sbender9/wilhelmsk-node-server-setup
СкрытьПоказать больше...
Скриншоты
WilhelmSK Частые Вопросы
Приложение WilhelmSK бесплатное?
Да, WilhelmSK полностью бесплатное и не содержит встроенных покупок или подписок.
Является ли WilhelmSK фейковым или мошенническим?
✅ Приложение WilhelmSK кажется качественным и надежным. Пользователи очень довольны.
That’s the ultimate solution for me on our boat. A nice and clear looking display for almost everything. I even can display and control IoT devices with the web gauge or my Victron stuff with full control and show of all parameters, just like a CCGX.
There is not much I miss and if so, the author is really helpful and responsive. It only lacks of documentation. So you get to work your way through it until one day the docs are ready.
And until then I maybe have discovered only 50% of its potential.
Highly recommended and a must have if you are able to set up a SignalK server.
Finally
Finally I found what I was looking for. A smart way to build a Cockpit instrument panel. On an iPad SideBySide with my navigation app it is a perfect solution. The settings need a bit of “getting used to” but then it is just great.
However there is one final function that would make this app even more better: recording signalK stream and uploading it somewhere. You can view and safe it but I would like to record it in the background (while viewing the instruments)
Developer is very responsive
Very good developer
Great App - but can you use to local iPhone GPS?
Really great App. Easy to connect, reliable, everything great but I don’t have a GPS on my boat so I’d like to use the iPhone GPS directly or connecting to a GPS server app such as GPS2IP. Is this configuration supported?
UI needs help
Once you get into map, can’t get out. User Experience Design is not a hobby, it takes actual development and knowledge about how to wireframe, prototype, test and deploy. Expensive app to pay for for UX issues.
So glad I found this app
This app saved me from complicating my system. I already had all the hardware I needed and this enabled me to get what I was needing out of it. It get the signal from my multiplexer, which for me is my Vesper, and all the NMEA 2000 sensors that feed into it. Thanks Scott.
Wind Data not available
I purchased the app to use and monitor wind data [among other data points], but the app does not parse $WIMWD nor $SDMDA messages. I have a fairly new Simrad system (only 7yrs old) and these are the messages I need to view/monitor. I tried using OpenCPN and they are parsed correctly by that application. Please add functionality for this in your app. I emailed the developer and provided all necessary log and message data. I am still waiting on a response.
Excellent app and fast support!!
I have a basic raymarine seatalk ng system on a sailboat. It includes a p70/ACU-200/EV-1 autopilot, wireless wind (T120 and T112), micro-talk gateway, Axiom 7 MFD, and YDWG. Not only can I see wind, gps, and rudder reference data in this app, but I can also control the autopilot!! It took only a few minutes to setup and even though I had the settings incorrect on my first go, Scott Bender’s advice fixed it right away. Definitely reach out before giving up!
Fantastic
This app represents a new step in bringing marine data into the hands of boat owners and anyone who has ever wanted to know more about the systems on their boat in a uniform, open manner.
Excellent
All the data I need on my watch phone or iPad. Controlling the autopilot from the watch has been huge.
